Automatic Large Capacity 20 Ton Ice Tube Making Machine Easy Control

बुनियादी जानकारी
Place of Origin: China
ब्रांड नाम: CBFI
प्रमाणन: CE, ISO
Model Number: TV200
Minimum Order Quantity: 1 set
मूल्य: USD 9500~10000000
Packaging Details: wooden case
Delivery Time: 45 days after the deposit
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50 to 60 sets/month
विस्तार जानकारी
Compressor: Germany Bitzer compressor tube ice diameter: 35mm, 28mm, 22mm
Evaporator: Stainless steel 304 seamless pipe Cooling way: Water cooling
Daily Capacity: 20,000kg/24h Control system: Touch screen with English
PLC: Siemens system Origin: Guangzhou, China
Material: 304 Stainless steel Refrigerant: R404A/R22

उत्पाद विवरण

CBFI automatic easy control large capacity 20 Ton Tube Ice Machine



1. Tube Ice Application

Human consumption

Drinks & coffee shop, bar, hotel, restaurant

Supermarket, stores, food market

Food Processing factory

Poultry processing factory

Chemical and concrete project

Hospital & Medical care





Automatic Large Capacity 20 Ton Ice Tube Making Machine Easy Control

Automatic Large Capacity 20 Ton Ice Tube Making Machine Easy Control

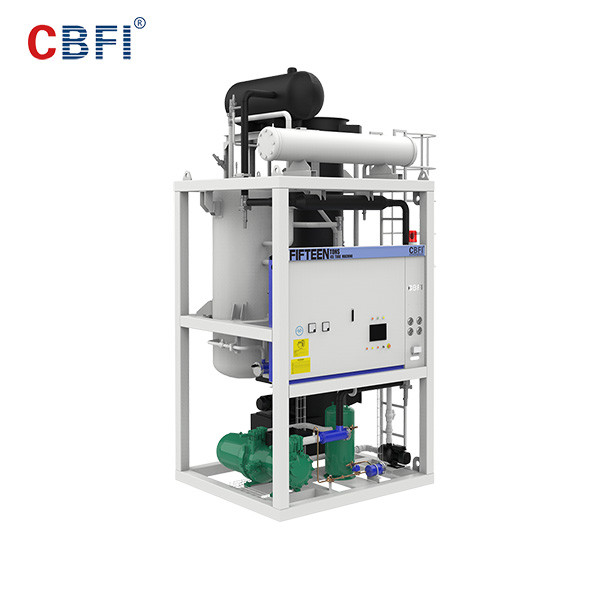

2. CBFI tube ice machine picture

Automatic Large Capacity 20 Ton Ice Tube Making Machine Easy Control



20 ton tube ice machine







3. Tube Ice Machine Feature:

1)Daily capacity from 1000 kg to 50,000 kg for optional, price different according to the machine capacity

2)Tube ice diameter 22 mm, 28mm, 35 mm for optional

3)Ice Making Automatically, monitored by Germany Siemens, no need people stand by

4) High efficiency running, power consumption 80 kw.h per ton ice

5) Ice output



Automatic Large Capacity 20 Ton Ice Tube Making Machine Easy Control



4. Company Introduction

Guangzhou Icesource Co,.Ltd was established in 2004, specialized in ice machine and cold room manufacture, including cube ice machine, tube ice machine, block ice machine, flake ice machine, plate ice machine, water chiller and cold room, product was export to Europe, North and South America, Asia, Middle East, Africa.

Icesource is located in Guangzhou city, branch company include Guangzhou Ice Spring Refrigeration Equipment Co. Ltd., Guangzhou Huibo Electrical Installation Engineering Co., Ltd, Icesource(Chengdu) Co,.Ltd



Inventor of large capacity Cube Ice Machine 3 ton per day

Build the first set large capacity 100 ton block ice machine by Freon system

Partners of 2008 Beijing Olympic Games Edible Ice Supplier

Partners of 2010 Shanghai EXPO Edible Ice Supplier

Build the biggest Edible Ice Plant in Dubai, UAE

Build the biggest Edible Ice Plant in Doha, Qatar

Build the biggest Edible Ice Plant in South Korea



Automatic Large Capacity 20 Ton Ice Tube Making Machine Easy Control





5. Machine parameter





Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
kw
W*H*L(mm)



KG
TV10
1.0
4.28
0.55
1.1
0.18
0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
1.5
1600*1400*2250
1800

 TV100

    10.0

29.2
1.5
4
1.5
1.5
1200*1200*3100

 2300*1550*1800

3500
TV150
15.0
49
2.2

5.5

1.5
1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5
5.5
2.2
2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
2.2
3000*2200*2500

 2200*1900*6200

7200
