Siemens PLC Control System Tube Ice Machine With LG Electric Accessories

बुनियादी जानकारी
Place of Origin: China
ब्रांड नाम: CBFI
प्रमाणन: CE, ISO9001,ISO14001
Model Number: TV10-TV300
Minimum Order Quantity: 1 set
मूल्य: USD 1~10000000
Packaging Details: wooden case or Bubble film
Delivery Time: 30 days after the deposit
Payment Terms: T/T, L/C, Western Union, MoneyGram
Supply Ability: 50 sets/ month
विस्तार जानकारी
Condition: Brand new Output: 1 ton to 30 tons
Tube ice diameter: 22mm, 28m, 35mm Machine shipping: one 20 feet container or one 40 feet container
Compressor: Germany Bitzer/ Germany Bock/ Taiwan Hanbell Control: Germany Siemens

उत्पाद विवरण

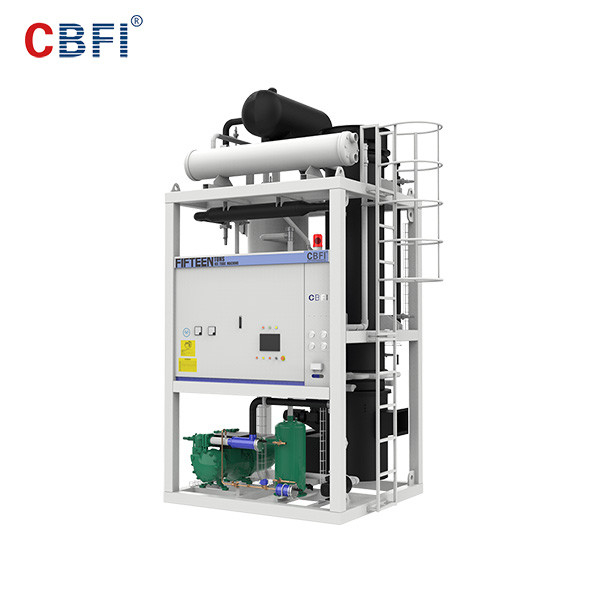

CBFI Siemens PLC Control System, Germany Bitzer compressor, LG electric accessories Ice Tube Machine









Tube Ice Maker Machine Models for Reference



Item No. Production Compressor Rated Power Circulating Water Pump Power Cooling Water Pump Power Cooling Fan Power Ice Cutter Motor Power



Machine

Dimension



Weight of Machine

  Ton/24H KW KW KW KW KW L*W*H KG
TV10 1.0 3.69 0.37 1.1 0.18 0.75 1320*950*1800 900
TV20 2.0 7.11 0.55 1.1 0.18 0.75 1400*1100*1800 1200
TV30 3.0 9.68 0.55 1.1 0.37 0.75 1500*1100*1950 1500
TV50 5.0 17.47 0.55 1.5 0.75 0.75 1600*1250*2200 1800
TV100 10.0 30.89 0.75 2.2 1.5 1.5 1700*1300*2200 3500
TV150 15.0 42.6 1.5 2.2 2.2 1.5 3000*1500*2200 4250
TV200 20.0 53.2 1.5 2.2 2.2 1.5 3500*1500*2200 6500



Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature



Siemens PLC Control System Tube Ice Machine With LG Electric Accessories



Commercial used Tube Ice machine



1.Daily Capacity : 1 ~ 30 ton



2.Ice making cycle : 20 ~ 25 mins



3.Ice Diameter : 22mm,28mm,35mm.









Installation:

1). Installing by the user: we will tested and install well the machine before shipment, all necessary spare parts, operation manual and CD are provided to guide the installation.



2).Installing by our engineers:

(1) We can send our engineer to assist the installation and provide technical support and train your workers. The end-user provide accommodation and round-trip ticket for our engineer.



(2) Before our engineer arrived in your site, the installation place, electricity, water and installation tools should be ready. Meanwhile, we will provide you a Tool List with the machine when delivery.



(3) All spare parts are provided according to our standard. During installation period, any shortage of parts due to the actual installation site, the buyer is required to afford the cost, such as water pipes.



(4) 2~ 3 workers are required to assist the installation for big project.







Siemens PLC Control System Tube Ice Machine With LG Electric Accessories





We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
